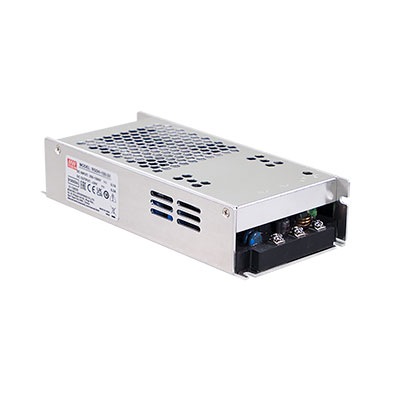

MEAN WELL RSDH-150-48 Enclosed DC to DC Isolated

MEAN WELL Rohs logo
RSDH-150-48 Enclosed

View larger image

  • Ultra-High Input Enclosed Power Supply DC-DC Converter 48V 3.12A 150W 250-1500VDCin
  • Jameco Part no.: 2351439
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: RSDH-150-48
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.9530

$$ Lowest Prices on MEAN WELL

You May Also Like
SD-200B-48 SD-200B-48
MEAN WELL
$89.90
SD-200C-48 SD-200C-48
MEAN WELL
$89.90
SD-200D-48 SD-200D-48
MEAN WELL
$89.90
SD-350B-48 SD-350B-48
MEAN WELL
$107.50
SD-350C-48 SD-350C-48
MEAN WELL
$107.50
SD-500L-48 SD-500L-48
MEAN WELL
$162.50

$73.20 ea

14 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $73.20
5+ $69.70
10+ $66.60
20+ $64.70

Request Larger Quantity Quote

Ultra-High Input Enclosed Power Supply DC-DC Converter 48V 3.12A 150W 250-1500VDCin

Features

  • 48V @ 3.12A
  • Protections: Short circuit / Overload / Over voltage / Over temperature / DC input under voltage / DC input reverse polarity
  • 250-1500Vdc 6:1 ultra-wide input range
  • Withstand 1700 Vdc surge input for 10 seconds
  • 4KVac I/O high isolation (Reinforced isolation)
  • Fanless design, half encapsulated, cooling by free air convection
  • Operating altitude up to 5000 meters
  • 1U low profile 41mm
  • 3 year warranty

Overview

The Ultra-High Input Enclosed Power Supply DC-DC Converter supplies [email protected] with an input voltage range of 250-1500Vdc. The power supply is highly efficient with low ripple noise and complete protection.



Report a problem
Suggest a product
Specification Value
Number of Outputs1
Output Voltage48 VDC
Additional Output Voltages (VDC)N/A
Output Current3.12 A
Input Voltage Range250 VDC to 1500 VDC
Maximum Input Current4 A
Output Connector TypeScrew Terminal Block
PackageRailway Enclosed
Agency ApprovalsCB, CE, EN, EAC
Power Rating150 W
Manufacturer SeriesRSDH-150
Product TypeDC to DC Converter SMPS
Efficiency92%
Minimum Operating Temperature-40°C
Maximum Operating Temperature80°C
Length9.3 in.
Width3.9 in.
Height1.6 in.
ColorSilver
MountingChassis
ComplianceCompliance Docs
