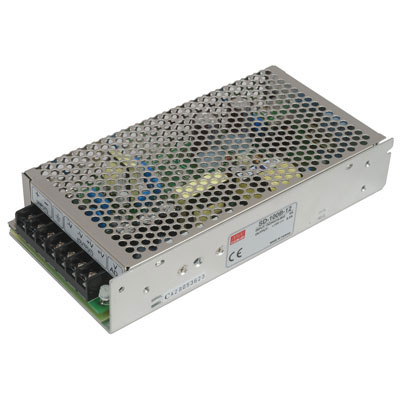

MEAN WELL SD-100B-12 Enclosed DC to DC Isolated

MEAN WELL Rohs logo
SD-100B-12 Enclosed

View larger image

  • 102W 12V 8500mA Enclosed DC to DC Converter 24VDCin Terminal Block
  • Jameco Part no.: 216566
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: SD-100B-12
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.9510

$$ Lowest Prices on MEAN WELL

You May Also Like
SD-150B-12 SD-150B-12
MEAN WELL
$52.30
SD-25A-12 SD-25A-12
MEAN WELL
$26.20
SD-100C-12 SD-100C-12
MEAN WELL
$40.70
SD-50C-12 SD-50C-12
MEAN WELL
$32.70
SD-50B-12 SD-50B-12
MEAN WELL
$32.70
SD-50A-12 SD-50A-12
MEAN WELL
$32.70

$40.70 ea

14 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $40.70
5+ $38.70
10+ $37.00
20+ $36.00

Request Larger Quantity Quote

102W Single Output DC-DC Converter


12 Volts @ 8.5 Amps

Features:
  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage
  • 1500VAC I/O isolation
  • Built-in EMI filter, low ripple noise
  • 100% full load burn-in test
  • Fixed switching frequency at 83KHz
  • 24V and 48V input voltage design refer to LVD
  • Low cost
  • High reliability
  • 2 years warranty



Report a problem
Suggest a product
Specification Value
Number of Outputs1
Output Voltage12 VDC
Additional Output Voltages (VDC)N/A
Output Current8.50 A
Input Voltage Range19 VDC to 36 VDC
Maximum Input Current4.8 A
Output Connector TypeScrew Terminal Block
PackageEnclosed
Agency ApprovalsCE, EN, EAC
Power Rating102 W
Manufacturer SeriesSD-100
Product TypeDC to DC Power Supply SMPS
Efficiency75%
Input Voltage24 VDC
Minimum Operating Temperature-10°C
Maximum Operating Temperature60°C
Pins7
Length7.8 in.
Width3.9 in.
Height1.5 in.
TypeStep Down
MountingEnclosed
Switching RegulatorYes
ComplianceCompliance Docs
