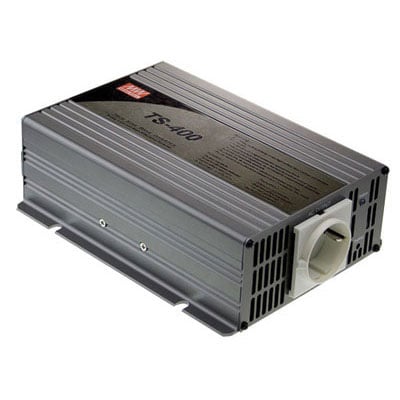

MEAN WELL TS-400-224B DC to AC Power Inverters

MEAN WELL Rohs logo
TS-400-224B DC to AC Power Inverters

View larger image

  • 400W True Sine Wave DC-AC Power Inverter Output: 200/220/230/240VAC switch selectable 50/60Hz 21-30VDC
  • Jameco Part no.: 2147532
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: TS-400-224B
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.9510

$$ Lowest Prices on MEAN WELL

You May Also Like
NTS-400P-224 NTS-400P-224
MEAN WELL
$104.95
A301-150-B2 A301-150-B2
MEAN WELL
$47.95
TS-1500-112A TS-1500-112A
MEAN WELL
$542.95
TN-1500-112A TN-1500-112A
MEAN WELL
$532.95
TN-1500-124A TN-1500-124A
MEAN WELL
$532.95
TN-1500-148A TN-1500-148A
MEAN WELL
$532.95
TN-1500-212B TN-1500-212B
MEAN WELL
$532.95

This product has been discontinued and is not available for purchase. Please click on the button below for replacement and/or substitute products.

Substitute Products
# of units Price
1+ $159.36
5+ $139.68
25+ $137.85

Request Larger Quantity Quote

400W True Sine Wave DC-AC Power Inverter


Output: 200 / 220 / 230 / 240VAC switch selectable @ 50/60Hz

Features:

  • Input voltage range: 21-30VDC
  • Input DC current: 20A typical
  • True sine wave output (THD<3%)
  • High surge power up to 800W
  • Protections: Battery low alarm / Battery low shutdown / Over voltage / Over temp./ Output short / Reverse polarity / Overload
  • High efficiency: 87.5%
  • Built-in remote ON-OFF control
  • Front panel indicator for operation status
  • Thermostatically controlled cooling fan
  • Size: 8.1"L x 6.2"W x 2.6"H
  • Weight: 3.8 lbs.
  • Uses European AC output receptacle

    Report a problem
    Suggest a product
    • Specification Value
    Output Voltage200 VAC, 220 VAC, 230 VAC, 240 VAC
    Output CurrentN/A
    Power Rating400 W
    AC Power CordNot Included
    Manufacturer SeriesTS-400
    Input Voltage24 VDC
    Input Frequency50 Hz, 60 Hz
    Output Connector TypeEuro Plug
    Number of Outputs1
    Product TypeTrue Sine DC-AC Inverter
    Minimum Operating Temperature-10°C
    Maximum Operating Temperature40°C
    Length6.2 in.
    Width2.6 in.
    Height8.1 in.
    ColorGray
    ComplianceCompliance Docs
