Velleman Discrete Power Amplifier - 200 Watts by Whadda

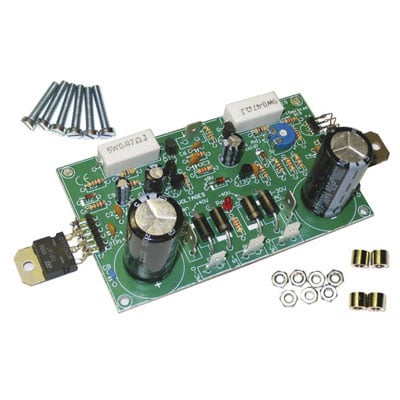

Discrete Power Amplifier - 200 Watts

Features

• excellent value for money
• fully discrete design using Epitaxial Darlington transistors
• DC supply circuit on board with LED indication
• ideal for active speaker system or subwoofer, guitar amp, home theatre systems, instrument amp, etc.
• comes complete with transistor isolators, spacers and bolts
• overload and short-circuit protection
• OPTIONAL HEATSINK REQUIRED! Also available as completely mounted (Pre-assembled) module VM100

Technical Specifications

• 200W music power @ 4 ohm load
• 100Wrms power @ 4 ohm load
• 70Wrms power @ 8 ohm load
• distortion: 0.02% @ 1KHz/10W
• damping factor: >800
• frequency response: 3Hz to 200KHz (-3dB)
• sensitivity: 0.6Vrms
• signal to noise ratio: 115dB
• power supply: 2 x 25-30Vac / 120VA
• PCB dimensions: 4.2 x 2.4" (approx.)
• recommended heatsink: HSVM100 (pre-drilled) or S44/75 (not drilled)
• recommended power transformer:
• 230VAC input, 2 x 30VAC output: 12030
• 115 / 230VAC input, 2 x 25VAC output: TR8040 (output power reduced by ±15%)

Overview

Whadda is a Premium Maker Brand by Velleman Group that produces electronics projects for enthusiasts.
