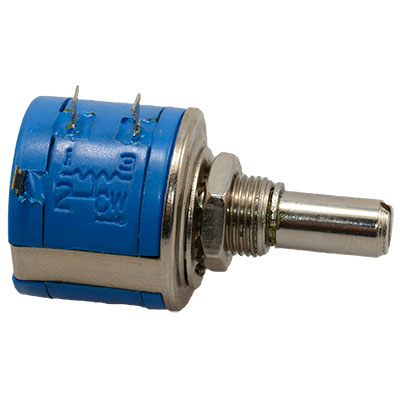

Precision Potentiometer 100K Ohm 2W Linear Wirewound 10-Turn Panel Mount Solder Lug

Precision Potentiometer 100K Ohm 2W Linear Wirewound 10-Turn Panel Mount Solder Lug

Specifications

• Series: 3540
• Resistance (Ohms): 100 K (100,000 / 104)
• Tolerance: ±5%
• Power (Watts): 2 W
• Built in Switch: None
• Number of Turns: 10
• Taper: Linear
• Number of Gangs: 1
• Adjustment Type: User Defined
• Temperature Coefficient: ±50 ppm/°C
• Rotation: 3600°
• Resistive Material: Wirewound
• Termination Style: Solder Lug
• Actuator Type: Slotted
• Actuator Length: 0.812" (20.63 mm)
• Actuator Diameter: 0.2497" (6.34 mm)
• Bushing Thread: 3/8-32
• Mounting Type: Panel Mount
• Size - Body: Round - 0.875" Dia x 0.750" H (22.23 mm x 19.05 mm)
• Base Number: 3540S
