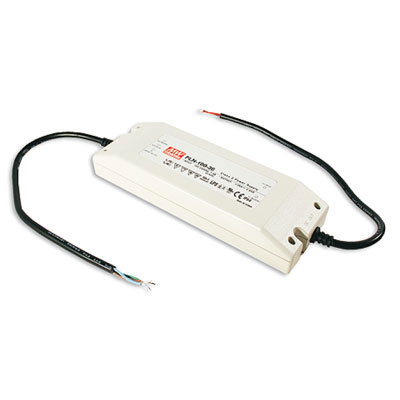

MEAN WELL PLN-100-12 Constant Current Constant Voltage LED Drivers

MEAN WELL Rohs logo
PLN-100-12 Constant Current, Voltage (CC/CV)

View larger image

  • AC to DC LED Driver Enclosed Power Supply Single Output 12 Volts 5 Amps 60 Watts
  • Jameco Part no.: 1918833
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: PLN-100-12
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.9520

$$ Lowest Prices on MEAN WELL

You May Also Like
PLC-100-12 PLC-100-12
MEAN WELL
$44.70
PLN-60-12 PLN-60-12
MEAN WELL
$39.95
PLN-30-12 PLN-30-12
MEAN WELL
$34.95
LPC-60-1750 LPC-60-1750
MEAN WELL
$15.20
LPC-20-350 LPC-20-350
MEAN WELL
$10.10
LPC-35-1050 LPC-35-1050
MEAN WELL
$14.29
LPC-60-1050 LPC-60-1050
MEAN WELL
$15.20

$44.80 ea

14 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $44.80
5+ $42.70
10+ $40.80
20+ $39.60

Request Larger Quantity Quote

60W Enclosed LED Power Supply with PFC Function

12 Volts @ 5 Amps

Features:
  • Suitable for LED lighting and moving sign applications
  • Input: 90-295VAC @ 47-63Hz, or 127-417VDC
  • Size: 7.9"L x 2.8"W x 1.4"H
  • Ripple and Noise: 150mVp-p
  • Load Regulation: ±2.0%
  • Line Regulation: ±1.0%
  • Universal AC input/full range
  • 100% full-load burn-in test
  • Constant voltage and current
  • Short-circuit, Overload, Over-voltage protection
  • 2-year warranty
  • Certification: UL/CUL/TUV/CE/PFC


    Report a problem
    Suggest a product
    • Specification Value
    Output Voltage12 VDC
    Output Current5 A
    Output Range10.2 VDC to 12 VDC
    Input Voltage90 VAC to 264 VAC
    Output Connector TypeStripped and Tinned
    Length7.87 in.
    Width2.77 in.
    Height1.37 in.
    PFC FunctionYes
    Agency ApprovalsUL, CUL, TUV, CB, CE, EN, EAC, CCC
    Power Rating60 W
    Input Frequency47 Hz to 63 Hz
    Maximum Input Current1.1 A
    Efficiency83%
    Minimum Isolation Voltage3750V
    Minimum Operating Temperature-30°C
    Maximum Operating Temperature50°C
    Manufacturer SeriesPLN-100
    Number of Outputs1
    ColorWhite
    Product TypeAuto Switching SMPS
    StyleEnclosed
    IP RatingIP64
    ComplianceCompliance Docs
