This product has been discontinued and is not available for purchase. Please click on the button below for replacement and/or substitute products.

Substitute Products

  • Jameco Part no.: 212441
  • Manufacturer: MEAN WELL
  • Manufacturer no.: SP-100-3.3
  • NCNR (Non-Cancelable, Non Returnable)
  • HTS code: 8504406012
  • Web Exclusive
# of units Price
1+ $42.59
10+ $40.59

Request a Large Quantity Quote

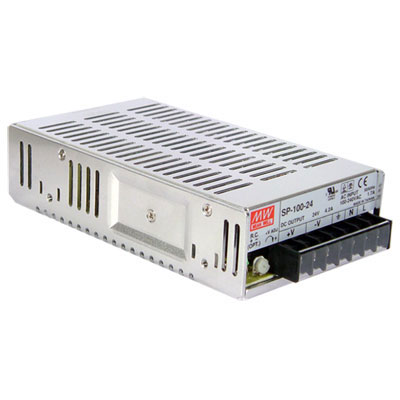

Enclosed Switching DC Power Supply
SP-100 Series: Single Output

This Mean Well family of 100-watt enclosed switchers feature input Power Factor Correction of 0.98 at 115VAC that complies with EN61000-3-2, required in Europe for power supplies 75 watts and above. They are approved by UL and TUV, and carry the CE mark, for use worldwide. The high-density enclosed packaging results in a profile of only 1.8" and a power density of 2.0 watts per inch3. As with all Mean Well products, all SP-100, products are subject to 100% full-load burn-in testing. This rigorous production procedure detects infant product failures, contributing to Mean Well's world-class reliability. Protection includes short-circuit, overload and over-voltage.
  • 100% full-load burn-in
  • Universal AC input
  • Power Factor Correction
  • 2.0 watts/in3
  • 105°C output capacitor
  • Three-year warranty
  • -10°C to +60°C working temperature
  • Output voltage: [email protected]
  • Watts: 66
  • Input voltage: [email protected]
  • Power density: 1.48W/in3
  • Ripple & noise: 100mV p-p
  • Load reg.:  1.0%
  • Line reg.:  0.5%
  • Inrush current (A) @ 120VAC: 40
  • Isolation voltage: 3000
  • Leakage current: 2.0mA @ 240V
  • Rise time: 30ms
  • Hold up time: 20ms
  • Vibration: 10-500HZ; 2G
  • Voltage adjustment: 10%
  • Efficiency: 70%
  • MTBF hours: 211,000
  • Mating connector: P/N 103587
  • Weight: 1.3 lbs.
  • Agency approval: UL/CUL/TUV/CE
