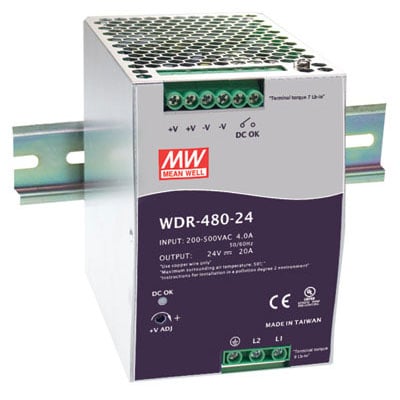

MEAN WELL WDR-480-24

You may also like:
DRP-480-24 DRP-480-24
MEAN WELL
SDR-960-24 SDR-960-24
MEAN WELL
MDR-60-24 MDR-60-24
MEAN WELL
MDR-20-24 MDR-20-24
MEAN WELL
EDR-120-24 EDR-120-24
MEAN WELL
SDR-240-24 SDR-240-24
MEAN WELL
MDR-100-24 MDR-100-24
MEAN WELL
MDR-40-24 MDR-40-24
MEAN WELL

$197.60 ea

10 In Stock
More will be available on Dec. 23

Email [email protected] for Product Availability

*This product is subject to a tariff.
See detail in the cart.


  • Jameco Part no.: 2127806
  • Manufacturer: MEAN WELL
  • Manufacturer no.: WDR-480-24
  • HTS code: 8504407012
  • Web Exclusive
# of units Price
1+ $197.60
5+ $179.90
25+ $161.91

Request a Large Quantity Quote

480W Single Output Industrial DIN Rail Power Supply

24 Volts @ 20 Amps

Features:

  • Input Voltage: 180~550VAC @ 47~63Hz, 254-780VDC
  • Short-circuit, Overload, Over-voltage, Over-temperature protection
  • High efficiency 93% and low power dissipation
  • 100% full load burn-in test
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • Ripple and Noise: 100mVp-p
  • Line Regulation: ±0.5%
  • Load Regulation: ±1.0%
  • Size: 3.37"W x 4.93"H x 5.06"D
  • Weight: 3.75 lbs.
  • 3-year warranty


Report a problem
Suggest a product
Specification Value
Output Voltage24 VDC
Output Current20 A
Power Rating480 W
Input Voltage180 VAC to 550 VAC
Input Frequency47 Hz to 63 Hz
Output Connector TypeScrew Terminal Block
Agency ApprovalsUL, CB, CE, EN, EAC
Low Power Source (LPS)No
PFC FunctionYes
Maximum Input Current4 A
FamilyWDR-480
Efficiency92%
Minimum Operating Temperature-30°C
Maximum Operating Temperature70°C
ColorSilver
Width4.93 in.
Height5.06 in.
Depth3.37 in.
Number of Outputs1
