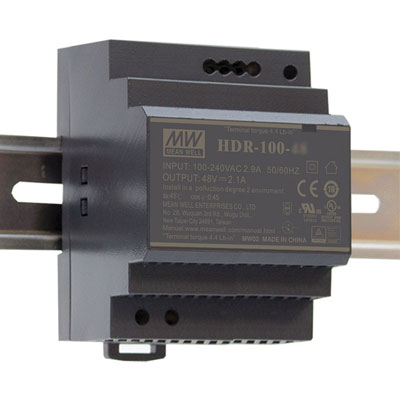

MEAN WELL HDR-100-24

You may also like:
MDR-100-24 MDR-100-24
MEAN WELL
SDR-120-24 SDR-120-24
MEAN WELL
MDR-60-24 MDR-60-24
MEAN WELL
MDR-20-24 MDR-20-24
MEAN WELL
EDR-120-24 EDR-120-24
MEAN WELL
SDR-240-24 SDR-240-24
MEAN WELL
MDR-40-24 MDR-40-24
MEAN WELL

$32.30 ea

More will be available on Feb. 24

Email [email protected] for Product Availability

Delivery delays are currently longer than normal due to raw material shortages and port congestion.

*This product is subject to a tariff.
See detail in the cart.


  • Jameco Part no.: 2264359
  • Manufacturer: MEAN WELL
  • Manufacturer no.: HDR-100-24
  • HTS code: 8504407012
  • Web Exclusive
# of units Price
1+ $32.30
5+ $29.40
25+ $26.46

Request a Large Quantity Quote

24V 3.83A 92W LPS Ultra Slim Step Shape 4SU DIN Rail Power Supply

24 Volts DC @ 3.83 Amps

Features

  • Standard model: Pass LPS with a narrower output adjustable range
  • Ultra Slim design with 70mm width (4SU)
  • Universal input 85-264VAC (277VAC operational)
  • No load power consumption <0.3W
  • Isolation class II
  • Pass LPS (limited power source)
  • DC output voltage adjustable
  • Protections: Short circuit, Overload, Over voltage
  • Cooling by free air convection (working temperature: -30 to +70°C)
  • DIN rail TS-35/7.5 or 15 mountable
  • LED indicator for power on
  • 3 year warranty

Specifications

  • Input voltage: 85 to 264 VAC @ 47-63 Hz
  • Size: 2.76" x 3.54" x 2.15"
  • Certification: UL, CUL, TUV, CB, CE, LPS

Applications

  • Household control systems
  • Automation of Buildings
  • Industrial Control Systems
  • Automation of manufacturing processes
  • Electro-mechanical apparatus


Report a problem
Suggest a product
Specification Value
Output Voltage24 VDC
Output Current3.83 A
Power Rating92 W
Input Voltage85 VAC to 264 VAC
Input Frequency47 Hz to 63 Hz
Output Connector TypeScrew Terminal Block
Agency ApprovalsUL, CUL, TUV, CB, CE, EN, EAC
Low Power Source (LPS)Yes
PFC FunctionNo
Maximum Input Current3 A
FamilyHDR-100
Efficiency90%
Minimum Operating Temperature-30°C
Maximum Operating Temperature70°C
ColorBlack
Width2.76 in.
Height3.54 in.
Depth2.15 in.
Number of Outputs1
