JE301 Amp Kit Bundle with 100VA 36VCT Single Primary (115VAC) Transformer - (PARTS 1-3) Just Add an Enclosure!

JE301 Amp Kit Bundle with 100VA 36VCT Single Primary Transformer - Just Add an Enclosure! (Parts 1-3)

Features

Bundle Includes:

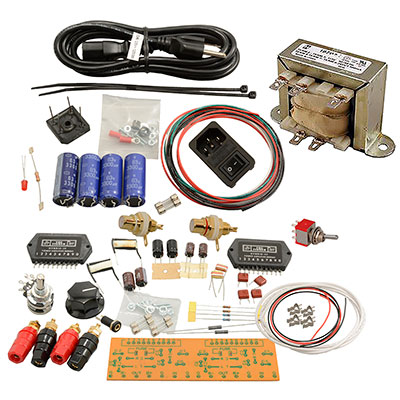

• JE301 amp kit (P/N: 2317775)
• Rectifier parts kit (P/N: 2796527)
• Tube of heat sink compound (P/N: 2796703)
• 100VA 36VCT transformer with single 115 VAC primary (Hammond Manufacturing 187F36, P/N: 2577623)
• Over $229 in value!

Just add a chassis of your choice to complete your own 60W Dual Mono (Stereo) Amplifier based on the Fisher PA301 audio amplifier. We put together a list of compatible enclosures that should fit everything. Minimum advisable size for an enclosure is 8"W x 6"D x 4"H for EI-core and should be aluminum because it will be used to sink heat away from the amplifiers. Toroidal transformers will need a little more room.

Overview

This 60-watt dual mono (stereo) amplifier project is based on the Fisher PA301 hybrid IC amplifier. This is a unique chance to work on a modern do-it-yourself project using historical solid-state circuit architecture. The circuit diagrams and build guide are provided above in PDF (Kit Instructions and Schematic). This project offers a special link between traditional audio engineering and contemporary do-it-yourself skills. This kit valued at over $229 offers a fantastic chance to make a piece of audio history with your own hands.

• Solder assembly of components and wire
• reading circuit diagrams and schematics
• light machining such as drilling holes and nibbling sheet metal

Exercise necessary safety precautions when working with power and mains voltage. Do not touch components while the unit is powered on or plugged in.
